import jax
import jax.numpy as jnp
import finitediffx as fdx
import matplotlib.pyplot as plt
x = jnp.linspace(0, 1, 1_000)[:, None]
y = x**2
params = {
"w1": jax.random.uniform(jax.random.PRNGKey(0), shape=[1, 20]),
"b1": jnp.zeros([20]),
"w2": jax.random.uniform(jax.random.PRNGKey(1), shape=[20, 1]),
"b2": jnp.zeros([1]),
}
def forward(params: dict[str, jax.Array], x: jax.Array):
x = x @ params["w1"] + params["b1"]
x = jax.nn.relu(x)
x = x @ params["w2"] + params["b2"]
return x
def loss_func(params: dict[str, jax.Array], x: jax.Array, y: jax.Array):
ypred = forward(params, x)
return jnp.mean((ypred - y) ** 2)
@jax.jit
def backprop_train_step(
params: dict[str, jax.Array],
x: jax.Array,
y: jax.Array,
lr: float,
):
loss, grads = jax.value_and_grad(loss_func)(params, x, y)
params = {k: v - lr * grads[k] for k, v in params.items()}
return params, loss
@jax.jit
def forward_train_step(
params: dict[str, jax.Array],
x: jax.Array,
y: jax.Array,
lr: float,
):
loss, grads = fdx.value_and_fgrad(loss_func)(params, x, y)
params = {k: v - lr * grads[k] for k, v in params.items()}
return params, loss
def train(
params: dict[str, jax.Array],
x: jax.Array,
y: jax.Array,
lr: float,
epochs: int,
fd_grad: bool = False,
):
train_step = forward_train_step if fd_grad else backprop_train_step
for epoch in range(1, epochs + 1):
params, loss = train_step(params, x, y, lr)
if epoch % 1_000 == 0:
print(f"Epoch {epoch} loss {loss:.3e}")
return params
print("backprop training")
params_backprop = train(params, x, y, lr=1e-2, epochs=10_000, fd_grad=False)
print("\nfinitediff training")
params_forward = train(params, x, y, lr=1e-2, epochs=10_000, fd_grad=True)
yhat_backprop = forward(params_backprop, x)
yhat_forward = forward(params_forward, x)

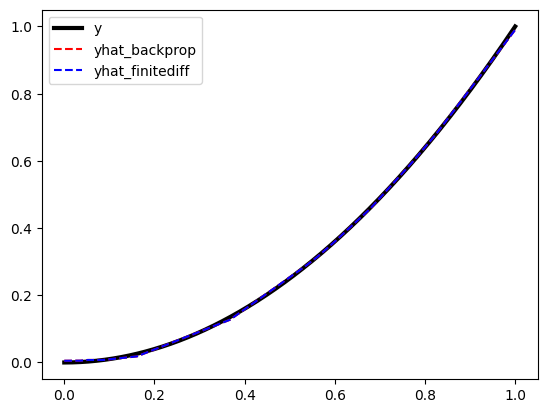

plt.plot(x, y, "-k", label="y", linewidth=3)
plt.plot(x, yhat_backprop, "--r", label="yhat_backprop")
plt.plot(x, yhat_forward, "--b", label="yhat_finitediff")
plt.legend()
